ListBrowserDelegate Class Reference

Properties
bool	autoExclusive
bool	checkable
bool	checked
alias	containsDrag
alias	content
alias	dropArea
alias	iconItem
alias	iconSizeHint
alias	iconSource
alias	iconVisible
alias	imageSource
alias	label1
alias	label2
alias	label3
alias	label4
alias	layout
alias	leftLabels
alias	maskRadius
alias	rightLabels
alias	showLabel
alias	template

Signals
void	contentDropped (var drop)
void	contentEntered (var drag)
void	toggled (bool state)

Detailed Description

A MauiKit ItemDelegate with an informational row layout.

This controls inherits from MauiKit ItemDelegate, to checkout its inherited properties refer to docs.

Note

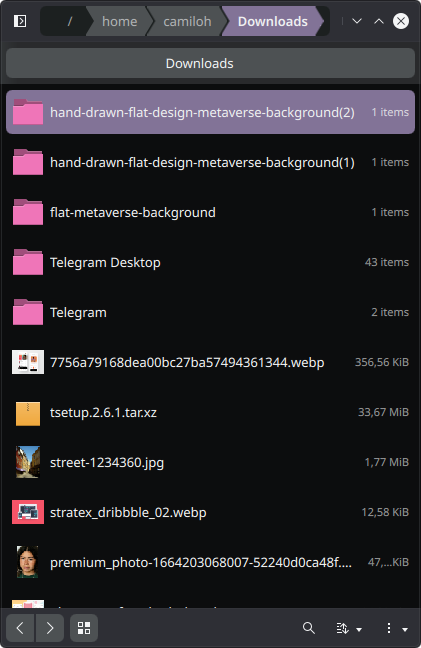

An example of ListBrowserDelegate in the Index -f ile manager - application.

Structure

The ListBrowserDelegate layouts its information horizontally. It's composed of two main sections: the far left icon header, and the text labels at the right side - there are four [4] possible labels. Those sections are all handled by a MauiKit ListItemTemplate control, which is exposed by the alias property template.

See also

ListItemTemplate

template

The far left icon section is handled by default by a MauiKit IconItem, which can have an image or icon. Those can be set via the imageSource or the iconSource properties.

See also

IconItem

The said icon header can also be replaced by any other component using the template.iconComponent property.

Notes

This control can be checkable, and a CheckBox element will be placed on the left side. It also supports features from the Button type, such as the autoExclusive, checked properties and the press events.

By inheritance this component can be dragable.

Note

This control is usually used as the delegate component for the ListBrowser or QQC2 ListView.

Drag & Drop

To set up the drag and drop, use the Drag attached properties. The most relevant part for this control is to set the Drag.keys and Drag.mimeData

Drag.keys: ["text/uri-list"]
Drag.mimeData: Drag.active ?
{
   "text/uri-list": "" //here a list of file separated by a comma.
} : {}

Maui.ListBrowserDelegate
{
   width: ListView.view.width
   label1.text: "An example delegate."
   label2.text: "Using the MauiKit ListBrowser."

   iconSource: "folder"
}

You can find a more complete example at this link.

Definition at line 74 of file ListBrowserDelegate.qml.

Property Documentation

autoExclusive

bool ListBrowserDelegate::autoExclusive

read

Whether the control should be auto exclusive, this means that among other related elements - sharing the same parent - only one can be selected/checked at the time.

By default this is set to false.

Definition at line 146 of file ListBrowserDelegate.qml.

checkable

bool ListBrowserDelegate::checkable

read

Whether the control should become checkable.

If it is checkable a CheckBox element will become visible to allow to toggle between the checked states. By default this is set to false.

Definition at line 141 of file ListBrowserDelegate.qml.

checked

bool ListBrowserDelegate::checked

read

Whether the control is checked or not.

By default this is set to false.

Definition at line 136 of file ListBrowserDelegate.qml.

containsDrag

alias ListBrowserDelegate::containsDrag

read

Whether this element currently contains any item being dragged on top of it.

Remarks

This property is read-only

Definition at line 173 of file ListBrowserDelegate.qml.

content

alias ListBrowserDelegate::content

read

See also

ListItemTemplate::content

Remarks

This is the default property

Definition at line 87 of file ListBrowserDelegate.qml.

dropArea

alias ListBrowserDelegate::dropArea

read

An alias to expose the DropArea component in charge of the drag&drop events.

See also

contentDropped

Remarks

This property is read-only

Definition at line 179 of file ListBrowserDelegate.qml.

iconItem

alias ListBrowserDelegate::iconItem

read

See also

ListItemTemplate::iconItem

Definition at line 111 of file ListBrowserDelegate.qml.

iconSizeHint

alias ListBrowserDelegate::iconSizeHint

read

See also

ListItemTemplate::iconSizeHint

Definition at line 119 of file ListBrowserDelegate.qml.

iconSource

alias ListBrowserDelegate::iconSource

read

See also

ListItemTemplate::iconSource

Definition at line 127 of file ListBrowserDelegate.qml.

iconVisible

alias ListBrowserDelegate::iconVisible

read

See also

ListItemTemplate::iconVisible

Definition at line 115 of file ListBrowserDelegate.qml.

imageSource

alias ListBrowserDelegate::imageSource

read

See also

ListItemTemplate::imageSource

Definition at line 123 of file ListBrowserDelegate.qml.

label1

alias ListBrowserDelegate::label1

read

See also

ListItemTemplate::label1

Remarks

This property is read-only

Definition at line 92 of file ListBrowserDelegate.qml.

label2

alias ListBrowserDelegate::label2

read

See also

ListItemTemplate::label2

Remarks

This property is read-only

Definition at line 97 of file ListBrowserDelegate.qml.

label3

alias ListBrowserDelegate::label3

read

See also

ListItemTemplate::label3

Remarks

This property is read-only

Definition at line 102 of file ListBrowserDelegate.qml.

label4

alias ListBrowserDelegate::label4

read

See also

ListItemTemplate::label4

Remarks

This property is read-only

Definition at line 107 of file ListBrowserDelegate.qml.

layout

alias ListBrowserDelegate::layout

read

An alias to access the layout fo this control handled by a RowLayout.

Remarks

This property is read-only

Definition at line 185 of file ListBrowserDelegate.qml.

leftLabels

alias ListBrowserDelegate::leftLabels

read

See also

ListItemTemplate::leftLabels

Remarks

This property is read-only

Definition at line 151 of file ListBrowserDelegate.qml.

maskRadius

alias ListBrowserDelegate::maskRadius

read

See also

ListItemTemplate::maskRadius

Definition at line 167 of file ListBrowserDelegate.qml.

rightLabels

alias ListBrowserDelegate::rightLabels

read

See also

ListItemTemplate::rightLabels

Remarks

This property is read-only

Definition at line 156 of file ListBrowserDelegate.qml.

showLabel

alias ListBrowserDelegate::showLabel

read

See also

ListItemTemplate::labelsVisible

Definition at line 131 of file ListBrowserDelegate.qml.

template

alias ListBrowserDelegate::template

read

An alias to access the ListItemTemplate control properties.

Remarks

This property is read-only

This is the template element that layouts all the information: labels and icon/image.

See also

ListItemTemplate

Definition at line 163 of file ListBrowserDelegate.qml.

Member Function Documentation

contentDropped

void ListBrowserDelegate::contentDropped ( var drop )

signal

Emitted when a drop event has been triggered on this control.

Parameters

drop	The object with information about the event.

contentEntered

void ListBrowserDelegate::contentEntered ( var drag )

signal

Emitted when a drop event has entered the area of this control.

Parameters

drop	The object with information about the event.

toggled

void ListBrowserDelegate::toggled ( bool state )

signal

Emitted when the control checked state has been changed.

Parameters

state

The checked state value.

---

The documentation for this class was generated from the following file:

• ListBrowserDelegate.qml
