KLinkItemSelectionModel Class

Makes it possible to share a selection in multiple views which do not have the same source model. More...

Header:	`#include <KLinkItemSelectionModel>`
CMake:	`find_package(KF6 REQUIRED COMPONENTS ItemModels)` `target_link_libraries(mytarget PRIVATE KF6::ItemModels)`

List of all members, including inherited members

Properties

linkedItemSelectionModel : QItemSelectionModel*

Public Functions

	KLinkItemSelectionModel(QObject *parent = nullptr)
	KLinkItemSelectionModel(QAbstractItemModel *targetModel, QItemSelectionModel *linkedItemSelectionModel, QObject *parent = nullptr)
QItemSelectionModel *	linkedItemSelectionModel() const
void	setLinkedItemSelectionModel(QItemSelectionModel *selectionModel)

Signals

void	linkedItemSelectionModelChanged()

Detailed Description

Although multiple views can share the same QItemSelectionModel, the views then need to have the same source model.

If there is a proxy model between the model and one of the views, or different proxy models in each, this class makes it possible to share the selection between the views.

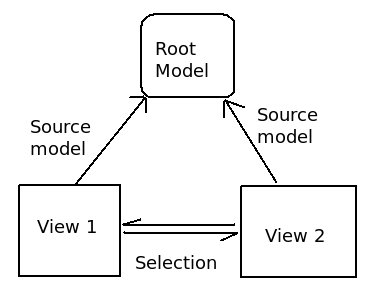

Sharing a QItemSelectionModel between views on the same model is trivial

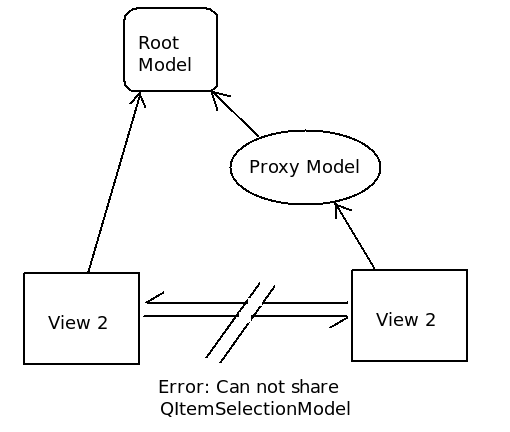

If a proxy model is used, it is no longer possible to share the QItemSelectionModel directly

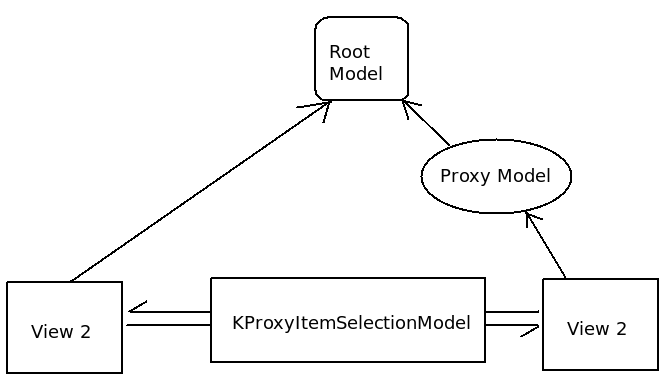

A KLinkItemSelectionModel can be used to map the selection through the proxy model

QAbstractItemModel *model = getModel();

QSortFilterProxyModel *proxy = new QSortFilterProxyModel();
proxy->setSourceModel(model);

QTreeView *view1 = new QTreeView(splitter);
view1->setModel(model);

KLinkItemSelectionModel *view2SelectionModel = new KLinkItemSelectionModel( proxy, view1->selectionModel());

QTreeView *view2 = new QTreeView(splitter);
// Note that the QAbstractItemModel passed to KLinkItemSelectionModel must be the same as what is used in the view
view2->setModel(proxy);
view2->setSelectionModel( view2SelectionModel );

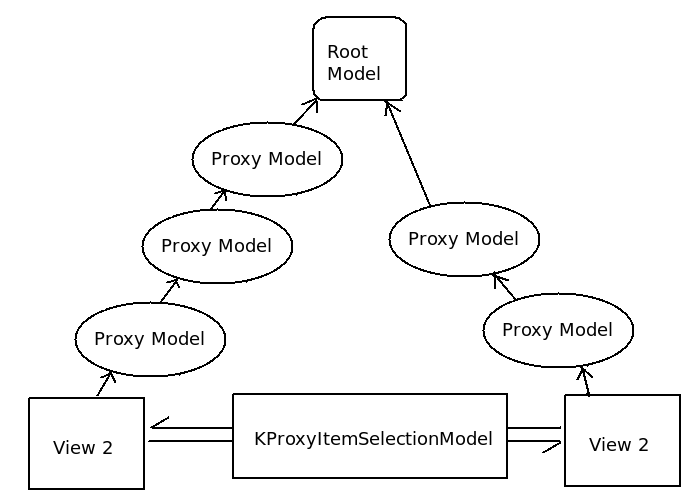

Arbitrarily complex proxy configurations on the same root model can be used

QAbstractItemModel *model = getModel();

QSortFilterProxyModel *proxy1 = new QSortFilterProxyModel();
proxy1->setSourceModel(model);
QSortFilterProxyModel *proxy2 = new QSortFilterProxyModel();
proxy2->setSourceModel(proxy1);
QSortFilterProxyModel *proxy3 = new QSortFilterProxyModel();
proxy3->setSourceModel(proxy2);

QTreeView *view1 = new QTreeView(splitter);
view1->setModel(proxy3);

QSortFilterProxyModel *proxy4 = new QSortFilterProxyModel();
proxy4->setSourceModel(model);
QSortFilterProxyModel *proxy5 = new QSortFilterProxyModel();
proxy5->setSourceModel(proxy4);

KLinkItemSelectionModel *view2SelectionModel = new KLinkItemSelectionModel( proxy5, view1->selectionModel());

QTreeView *view2 = new QTreeView(splitter);
// Note that the QAbstractItemModel passed to KLinkItemSelectionModel must be the same as what is used in the view
view2->setModel(proxy5);
view2->setSelectionModel( view2SelectionModel );

Property Documentation

linkedItemSelectionModel : QItemSelectionModel*

Access functions:

QItemSelectionModel *	linkedItemSelectionModel() const
void	setLinkedItemSelectionModel(QItemSelectionModel *selectionModel)

Notifier signal:

void	linkedItemSelectionModelChanged()

Member Function Documentation

`[explicit]` KLinkItemSelectionModel::KLinkItemSelectionModel(QObject **parent* = nullptr)

KLinkItemSelectionModel::KLinkItemSelectionModel(QAbstractItemModel **targetModel*, QItemSelectionModel **linkedItemSelectionModel*, QObject **parent* = nullptr)

Constructor.
