#include <codeclassfielddeclarationblock.h>

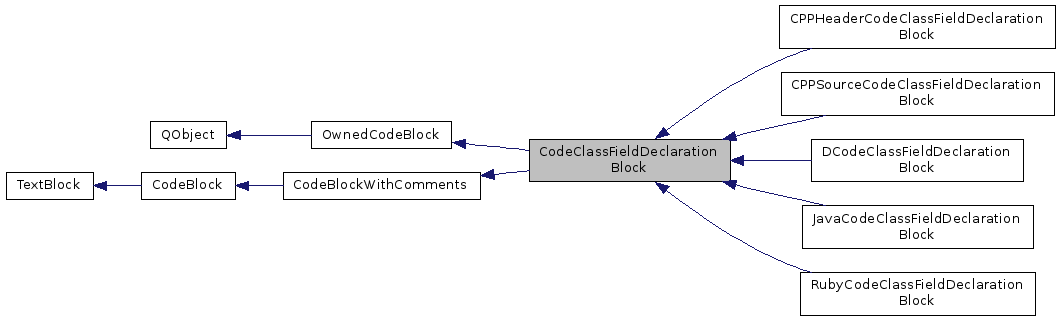

Inheritance diagram for CodeClassFieldDeclarationBlock:

Public Slots
virtual void	syncToParent ()

Public Slots inherited from OwnedCodeBlock
virtual void	syncToParent ()

Public Member Functions
	CodeClassFieldDeclarationBlock (CodeClassField *parent)

virtual	~CodeClassFieldDeclarationBlock ()

CodeClassField *	getParentClassField ()

UMLObject *	getParentObject ()

virtual void	loadFromXMI (QDomElement &root)

virtual void	saveToXMI (QDomDocument &doc, QDomElement &root)

virtual void	setAttributesFromObject (TextBlock *obj)

virtual void	updateContent ()=0

Public Member Functions inherited from OwnedCodeBlock
	OwnedCodeBlock (UMLObject *parent)

virtual	~OwnedCodeBlock ()

UMLObject *	getParentObject ()

Public Member Functions inherited from CodeBlockWithComments
	CodeBlockWithComments (CodeDocument *parent, const QString &body="", const QString &comment="")

virtual	~CodeBlockWithComments ()

CodeComment *	getComment () const

void	setComment (CodeComment *object)

void	setOverallIndentationLevel (int level)

virtual QString	toString () const

Public Member Functions inherited from CodeBlock
	CodeBlock (CodeDocument *parent, const QString &body="")

virtual	~CodeBlock ()

ContentType	contentType () const

void	setContentType (ContentType new_var)

Public Member Functions inherited from TextBlock
	TextBlock (CodeDocument *parent, const QString &text="")

virtual	~TextBlock ()

void	appendText (const QString &text)

bool	canDelete () const

virtual int	firstEditableLine ()

int	getIndentationLevel () const

QString	getIndentationString (int level=0) const

virtual QString	getNewEditorLine (int amount=0)

CodeDocument *	getParentDocument () const

QString	getTag () const

QString	getText () const

bool	getWriteOutText () const

virtual int	lastEditableLine ()

void	setIndentationLevel (int level)

void	setTag (const QString &value)

void	setText (const QString &text)

void	setWriteOutText (bool write)

virtual QString	unformatText (const QString &text, const QString &indent="")

Protected Member Functions
void	forceRelease ()

virtual void	release ()

virtual void	setAttributesFromNode (QDomElement &element)

virtual void	setAttributesOnNode (QDomDocument &doc, QDomElement &blockElement)

Protected Member Functions inherited from TextBlock
void	setCanDelete (bool canDelete)

Additional Inherited Members
Public Types inherited from CodeBlock
enum	ContentType { AutoGenerated =0, UserGenerated }

Static Public Member Functions inherited from CodeBlock
static QString	enumToString (const ContentType &val)

Static Public Member Functions inherited from TextBlock
static QString	decodeText (const QString &text, const QString &endLine)

static QString	encodeText (const QString &text, const QString &endLine)

static QString	formatMultiLineText (const QString &work, const QString &linePrefix, const QString &breakStr, bool addBreak=true, bool lastLineHasBreak=true)

static QString	getIndentation ()

static QString	getNewLineEndingChars ()

Detailed Description

Used to declare classifier fields (e.g.

either class attributes or classifier associations) in the code document for any given code classfield. This is a special CodeBlockWithComments which is "sync'd" to the parent CodeClassField. Note: keep the inheritance sequence: QObject needs to be first in inheritance list. Basicially a class to allow for synchronization of the contents based on the values of the parentClassField's parentObject.

Definition at line 29 of file codeclassfielddeclarationblock.h.
