Doodle Class Reference

Inherits org::mauikit::controls::PopupPage.

Properties
color	bgColor
alias	brushOpacity
alias	brushShape
alias	brushSize
alias	maxBrushSize
alias	paintColor
alias	source
Item	sourceItem

Detailed Description

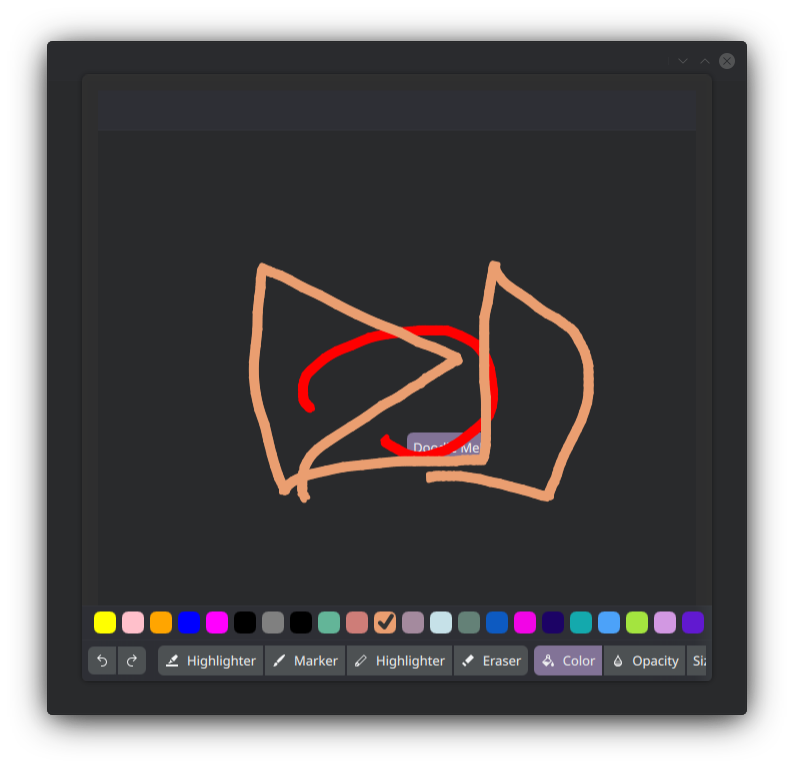

A drawing component wrapped in a popup surface. This controls inherits from MauiKit PopupPage, to checkout its inherited properties refer to the docs.

Since

org.mauikit.controls.labs 1.0

See also

PopupPage

Warning

This control is incomplete and will be moved out its own plugin named MauiKit::Painting

Maui.Page
{
    id: _page

    anchors.fill: parent
    Maui.Controls.showCSD: true
    Maui.Theme.colorSet: Maui.Theme.Window
    headBar.forceCenterMiddleContent: true

    Button
    {
        anchors.centerIn: parent
        text: "Doodle Me!"
        onClicked: _doodle.open()
    }
}

Maui.Doodle
{
    id: _doodle
    sourceItem: _page
}

You can find a more complete example at this link.

Definition at line 43 of file Doodle.qml.

Property Documentation

bgColor

color Doodle::bgColor

read

The background color of the canvas.

Remarks

This property is read-only

Definition at line 58 of file Doodle.qml.

brushOpacity

double Doodle::brushOpacity

read

The opacity of the brush.

Definition at line 72 of file Doodle.qml.

brushShape

int Doodle::brushShape

read

The shape of the brush.

Possibel values are:

• 0 for circular
• 1 for rectangular

Definition at line 80 of file Doodle.qml.

brushSize

double Doodle::brushSize

read

The size of the brush.

Definition at line 67 of file Doodle.qml.

maxBrushSize

double Doodle::maxBrushSize

read

The maximum size of the brush.

Definition at line 86 of file Doodle.qml.

paintColor

color Doodle::paintColor

read

The color of the paint to use with the brush.

Definition at line 91 of file Doodle.qml.

source

alias Doodle::source

read

An image source to be used as the background to doodle over it.

Definition at line 62 of file Doodle.qml.

sourceItem

Item Doodle::sourceItem

read

A source item can be captured to start doodling over it and to be saved later as an image.

Definition at line 53 of file Doodle.qml.

---

The documentation for this class was generated from the following file:

• Doodle.qml
