PieButton Class Reference

Inheritance diagram for PieButton:

Properties
list< Action >	actions
alias	display
alias	icon
alias	text

Public Member Functions
void	close ()
void	open ()

Detailed Description

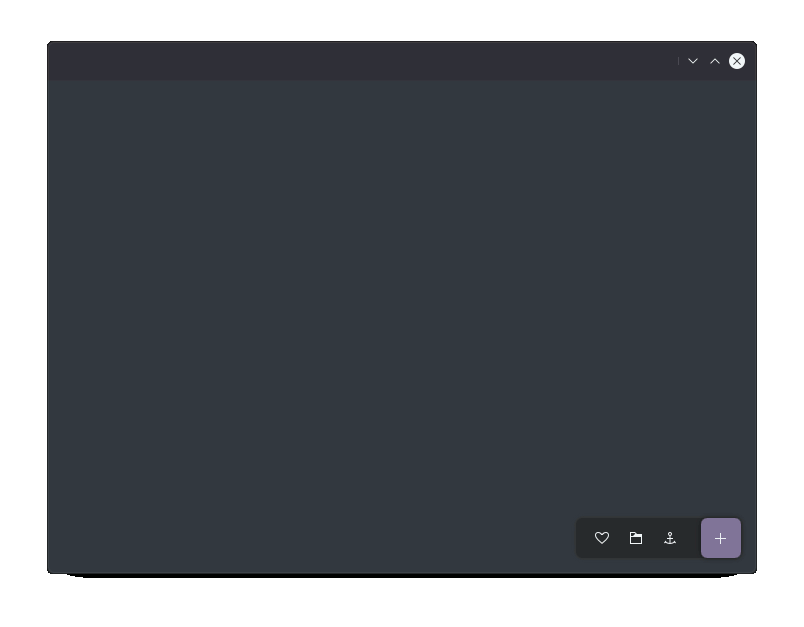

A group of actions positioned in a plegable ribbon that fold/unfolds from a big floating colored button.

This control inherits from QQC2 Control, to checkout its inherited properties refer to the Qt Docs.

Maui.PieButton
{
    Maui.Theme.inherit: false
    anchors.right: parent.right
    anchors.bottom: parent.bottom
    anchors.margins: Maui.Style.space.big

    icon.name: "list-add"

    Action
    {
        icon.name: "love"
    }

    Action
    {
        icon.name: "folder"
    }

    Action
    {
        icon.name: "anchor"
    }
}

You can find a more complete example at this link.

Definition at line 62 of file PieButton.qml.

Property Documentation

actions

list<Action> PieButton::actions

read

The action children of this control.

Remarks

This is the default property

Definition at line 68 of file PieButton.qml.

display

enum PieButton::display

read

How to display the text and the icon of the main floating button.

By default this is set to ToolButton.IconOnly

Definition at line 85 of file PieButton.qml.

icon

icon PieButton::icon

read

The icon group property alias to set the icon name, color, and size.

Note

See Qt documentation on the icon group.

Definition at line 74 of file PieButton.qml.

text

string PieButton::text

read

The text to be use in the main floating button.

Definition at line 79 of file PieButton.qml.

Member Function Documentation

close()

void PieButton::close

(

)

Forces to close the ribbon containing the action buttons.

open()

void PieButton::open

(

)

Forces to open the ribbon containing the action buttons.

---

The documentation for this class was generated from the following file:

• PieButton.qml
