SwipeBrowserDelegate Class Reference

Inheritance diagram for SwipeBrowserDelegate:

Properties
alias	iconItem
alias	iconSizeHint
alias	iconSource
alias	iconVisible
alias	imageSource
alias	label1
alias	label2
alias	label3
alias	label4
alias	template
Properties inherited from SwipeItemDelegate
alias	actionRow
int	buttonsHeight
bool	collapse
alias	content
list< Action >	quickActions
bool	showQuickActions

Detailed Description

A control used to display information in a horizontal layout, and with a set of actions placed underneath that is revealed by swiping to the left.

This control inherits from MauiKit SwipeItemDelegate, to checkout its inherited properties refer to the docs.

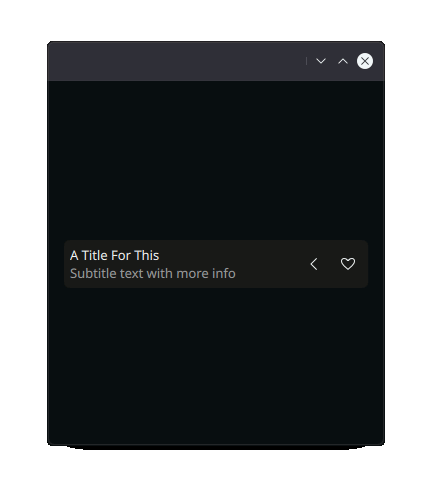

Revealing the actions in the compact mode

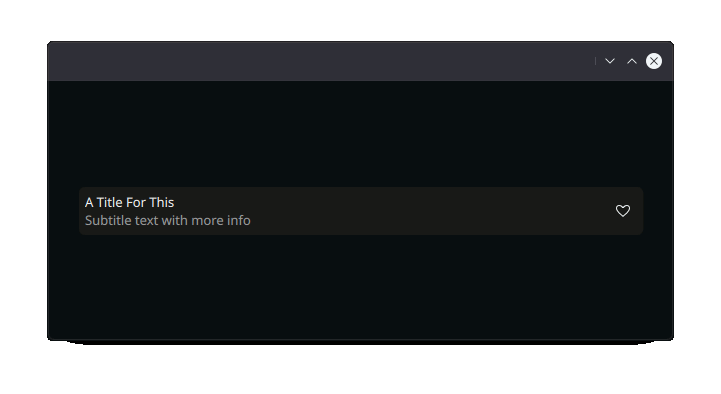

Revealing the actions in the expanded mode

Note

The compact/expanded modes are controlled by using the SwipeItemDelegate::collapse property.

See also

SwipeItemDelegate::collapse

Maui.SwipeBrowserDelegate
{
   width: parent.width
   label1.text: "A Title For This"
   label2.text: "Subtitle text with more info"

   quickActions: [
   Action
       {
           icon.name: "list-add"
       },

       Action
       {
           icon.name: "folder-new"
       },

       Action
       {
           icon.name: "anchor"
       }

   ]

   actionRow: ToolButton
   {
       icon.name: "love"
   }
}

Definition at line 65 of file SwipeBrowserDelegate.qml.

Property Documentation

iconItem

alias SwipeBrowserDelegate::iconItem

read

See also

ListItemTemplate::iconItem

Definition at line 87 of file SwipeBrowserDelegate.qml.

iconSizeHint

alias SwipeBrowserDelegate::iconSizeHint

read

See also

ListItemTemplate::iconSizeHint

Definition at line 95 of file SwipeBrowserDelegate.qml.

iconSource

alias SwipeBrowserDelegate::iconSource

read

See also

ListItemTemplate::iconSource

Definition at line 103 of file SwipeBrowserDelegate.qml.

iconVisible

alias SwipeBrowserDelegate::iconVisible

read

See also

ListItemTemplate::iconVisible

Definition at line 91 of file SwipeBrowserDelegate.qml.

imageSource

alias SwipeBrowserDelegate::imageSource

read

See also

ListItemTemplate::imageSource

Definition at line 99 of file SwipeBrowserDelegate.qml.

label1

alias SwipeBrowserDelegate::label1

read

See also

ListItemTemplate::label1

Definition at line 71 of file SwipeBrowserDelegate.qml.

label2

alias SwipeBrowserDelegate::label2

read

See also

ListItemTemplate::label2

Definition at line 75 of file SwipeBrowserDelegate.qml.

label3

alias SwipeBrowserDelegate::label3

read

See also

ListItemTemplate::label3

Definition at line 79 of file SwipeBrowserDelegate.qml.

label4

alias SwipeBrowserDelegate::label4

read

See also

ListItemTemplate::label4

Definition at line 83 of file SwipeBrowserDelegate.qml.

template

LisItemTemplate SwipeBrowserDelegate::template

read

An alias to the information container handled by a MauiKit ListItemTemplate.

Exposed here for allowing access to its properties.

Definition at line 109 of file SwipeBrowserDelegate.qml.

---

The documentation for this class was generated from the following file:

• SwipeBrowserDelegate.qml
