ListBrowser Class Reference

Inheritance diagram for ListBrowser:

Properties
alias	atYBeginning
alias	atYEnd
alias	availableHeight
alias	availableWidth
alias	bottomPadding
alias	cacheBuffer
alias	contentHeight
alias	contentWidth
alias	contentX
alias	contentY
alias	count
alias	currentIndex
alias	currentItem
alias	delegate
bool	enableLassoSelection
alias	flickable
alias	footer
alias	header
alias	holder
int	horizontalScrollBarPolicy
alias	lassoRec
alias	leftPadding
alias	model
alias	orientation
alias	padding
alias	rightPadding
alias	scrollView
alias	section
bool	selectionMode
alias	snapMode
alias	spacing
alias	topPadding
int	verticalScrollBarPolicy

Signals
void	areaClicked (var mouse)
void	areaRightClicked ()
void	itemsSelected (var indexes)
void	keyPress (var event)

Additional Inherited Members
Public Member Functions inherited from QtQuick.Item
	childAt (real x, real y)
bool	contains (point point)
	dumpItemTree ()
	forceActiveFocus ()
	forceActiveFocus (Qt::FocusReason reason)
bool	grabToImage (callback, targetSize)
point	mapFromGlobal (real x, real y)
point	mapFromItem (Item item, point p)
point	mapFromItem (Item item, real x, real y)
rect	mapFromItem (Item item, real x, real y, real width, real height)
rect	mapFromItem (Item item, rect r)
point	mapToGlobal (real x, real y)
point	mapToItem (Item item, point p)
point	mapToItem (Item item, real x, real y)
rect	mapToItem (Item item, real x, real y, real width, real height)
rect	mapToItem (Item item, rect r)
	nextItemInFocusChain (bool forward)

Detailed Description

A browser view with a list layout.

This controls inherits from QQC2 Item, to checkout its inherited properties refer to the Qt Docs.

This component might seem similar to QQC2 ListView - and it does uses it underneath - but this one includes a few more predefined elements, such as a placeholder element, pinch to zoom gestures, lasso selection support, and some predefined behaviour.

Structure

The browser has a dedicated placeholder element handled by MauiKit Holder, where a message can be set when the view is on a determined state the user should be warned about, such as if the view is empty, or not search results were found.

See also

Holder

The lasso selection feature works with a mouse or a track-pad, and allows to select multiple items in the browser-view that are under the lasso rectangle area. A signal is emitted when the selection has been triggered - this is when the lasso rectangle is released - sending as an argument an array of numbers representing the indexes of the selected items.

See also

itemsSelected

Note

Consider using as the delegate elements the MauiKit ListBrowserDelegate.

To position the delegates you can use the ListView attached properties, such as ListView.view.width to set the width of the delegate correctly.

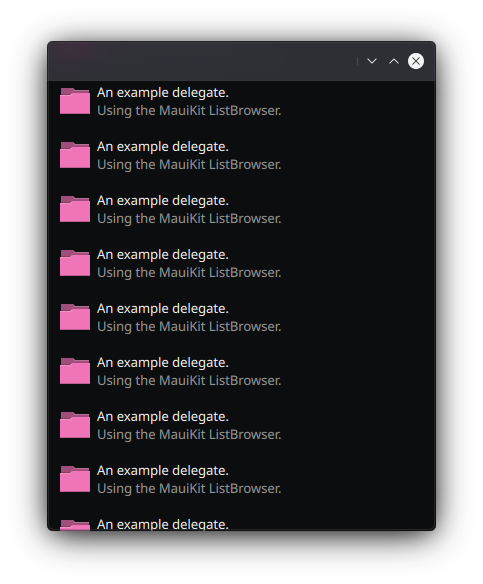

Maui.ListBrowser
{
   anchors.fill: parent
   model: 60

   enableLassoSelection: true
   onItemsSelected: (indexes) => console.log(indexes)

   delegate: Maui.ListBrowserDelegate
   {
       width: ListView.view.width
       label1.text: "An example delegate."
       label2.text: "Using the MauiKit ListBrowser."

       iconSource: "folder"
   }
}

You can find a more complete example at this link.

Definition at line 64 of file ListBrowser.qml.

Property Documentation

atYBeginning

bool ListBrowser::atYBeginning

read

Whether the view is positioned at the beginning on the Y axis.

Remarks

This property is read-only

Meant to be used if the view orientation has been set to vertical.

Definition at line 172 of file ListBrowser.qml.

atYEnd

bool ListBrowser::atYEnd

read

Whether the view is positioned at the end on the Y axis.

Remarks

This property is read-only

Meant to be used if the view orientation has been set to vertical.

Definition at line 165 of file ListBrowser.qml.

availableHeight

int ListBrowser::availableHeight

read

The actual height of the view-port.

Remarks

This property is read-only

This is the actual height without any padding.

Definition at line 270 of file ListBrowser.qml.

availableWidth

int ListBrowser::availableWidth

read

The actual width of the view-port.

Remarks

This property is read-only

This is the actual width without any padding.

Definition at line 264 of file ListBrowser.qml.

bottomPadding

int ListBrowser::bottomPadding

read

The bottom padding.

See also

padding

Definition at line 184 of file ListBrowser.qml.

cacheBuffer

int ListBrowser::cacheBuffer

read

The cache buffer.

Refer to the QQC2 ListView for proper documentation.

Definition at line 118 of file ListBrowser.qml.

contentHeight

int ListBrowser::contentHeight

read

The total height of all the elements listed in the view.

Definition at line 153 of file ListBrowser.qml.

contentWidth

int ListBrowser::contentWidth

read

The total width of all the elements.

Definition at line 158 of file ListBrowser.qml.

contentX

alias ListBrowser::contentX

read

Definition at line 96 of file ListBrowser.qml.

contentY

double ListBrowser::contentY

read

The position of the view contents on the Y axis.

The position of the view contents on the X axis.

Definition at line 91 of file ListBrowser.qml.

count

int ListBrowser::count

read

The total amount of elements listed in the view.

Definition at line 112 of file ListBrowser.qml.

currentIndex

int ListBrowser::currentIndex

read

The index number of the current element selected.

Note

To no break any binding, use the setCurrentIndex function.

Definition at line 102 of file ListBrowser.qml.

currentItem

Item ListBrowser::currentItem

read

The current item selected.

Definition at line 107 of file ListBrowser.qml.

delegate

Component ListBrowser::delegate

read

The component to be used as the delegate.

Note

Consider using the MauiKit delegate controls, such as ListBrowserDelegate, ListDelegate or LabelDelegate.

Definition at line 80 of file ListBrowser.qml.

enableLassoSelection

bool ListBrowser::enableLassoSelection

read

Whether to enable the lasso selection, to select multiple items.

By default this is set to false.

See also

itemsSelected

Definition at line 236 of file ListBrowser.qml.

flickable

ListView ListBrowser::flickable

read

An alias to access the QQC2 ListView.

Remarks

This property is read-only

Definition at line 142 of file ListBrowser.qml.

footer

Component ListBrowser::footer

read

The footer section of the ListView element.

See also

flickable

Definition at line 258 of file ListBrowser.qml.

header

Component ListBrowser::header

read

The header section of the ListView element.

See also

flickable

Definition at line 252 of file ListBrowser.qml.

holder

Holder ListBrowser::holder

read

An alias to access the placeholder properties.

This is handled by a MauiKit Holder.

See also

Holder::title

Holder::body

Definition at line 230 of file ListBrowser.qml.

horizontalScrollBarPolicy

int ListBrowser::horizontalScrollBarPolicy

read

The policy of the horizontal scroll bar from the scroll view.

See also

scrollView The default value of this is picked based on the Style property Style.scrollBarPolicy, unless the orientation of the view is set to vertical, in which case this is set to 'ScrollBar.AlwaysOff`. Possible values are:

• ScrollBar.AlwaysOff
• ScrollBar.AlwaysOn
• ScrollBar.AsNeeded

Definition at line 222 of file ListBrowser.qml.

lassoRec

Rectangle ListBrowser::lassoRec

read

An alias to the lasso rectangle.

Remarks

This property is read-only

Definition at line 246 of file ListBrowser.qml.

leftPadding

int ListBrowser::leftPadding

read

The left padding.

See also

padding

Definition at line 196 of file ListBrowser.qml.

model

var ListBrowser::model

read

The model to be used to populate the browsing view.

Definition at line 74 of file ListBrowser.qml.

orientation

enum ListBrowser::orientation

read

The orientation of the list view.

By default this is set to ListView.Vertical.

Definition at line 124 of file ListBrowser.qml.

padding

int ListBrowser::padding

read

The total padding all around the list view.

The padding is added to the ScrollView. This is the same as setting scrollView.padding.

Definition at line 202 of file ListBrowser.qml.

rightPadding

int ListBrowser::rightPadding

read

The right padding.

See also

padding

Definition at line 190 of file ListBrowser.qml.

scrollView

ScrollView ListBrowser::scrollView

read

An alias to access the QQC2 ScrollView.

Remarks

This property is read-only

Definition at line 148 of file ListBrowser.qml.

section

section ListBrowser::section

read

The section group property to set the ListView sections.

Refer to the Qt documentation on the ListView section.

Definition at line 86 of file ListBrowser.qml.

selectionMode

bool ListBrowser::selectionMode

read

Definition at line 240 of file ListBrowser.qml.

snapMode

enum ListBrowser::snapMode

read

How to snap the elements of the list view while scrolling.

Note

See Qt documentation.

Definition at line 130 of file ListBrowser.qml.

spacing

int ListBrowser::spacing

read

The spacing between the elements in the list view.

By default this is set to Style.defaultSpacing

Definition at line 136 of file ListBrowser.qml.

topPadding

int ListBrowser::topPadding

read

The top padding.

See also

padding

Definition at line 178 of file ListBrowser.qml.

verticalScrollBarPolicy

int ListBrowser::verticalScrollBarPolicy

read

The policy of the vertical scroll bar from the scroll view.

See also

scrollView The default value of this is picked based on the Style property Style.scrollBarPolicy, unless the orientation of the view is set to horizontal, in which case this is set to 'ScrollBar.AlwaysOff`. Possible values are:

• ScrollBar.AlwaysOff
• ScrollBar.AlwaysOn
• ScrollBar.AsNeeded

Definition at line 212 of file ListBrowser.qml.

Member Function Documentation

areaClicked

void ListBrowser::areaClicked ( var mouse )

signal

Emitted when an empty space of the background area has been clicked.

Parameters

mouse

Object with information about the click event.

areaRightClicked

void ListBrowser::areaRightClicked ( )

signal

Emitted when an empty space of the area area background has been right clicked.

itemsSelected

void ListBrowser::itemsSelected ( var indexes )

signal

Emitted when the lasso selection has been released.

Parameters

indexes

A array of index numbers is sent as the argument, representing the index value of the items under the lasso rectangle area.

keyPress

void ListBrowser::keyPress ( var event )

signal

Emitted when a physical key from the device has been pressed.

Parameters

event

The object with information about the event.

---

The documentation for this class was generated from the following file:

• ListBrowser.qml
