SectionGroup Class Reference

Inheritance diagram for SectionGroup:

Properties
alias	content
alias	description
alias	template
alias	title

Detailed Description

A control to group children elements into a column layout with a header section with a title and message body.

Since

org.mauikit.controls

This controls inherits from QQC2 Pane, to checkout its inherited properties refer to the Qt Docs.

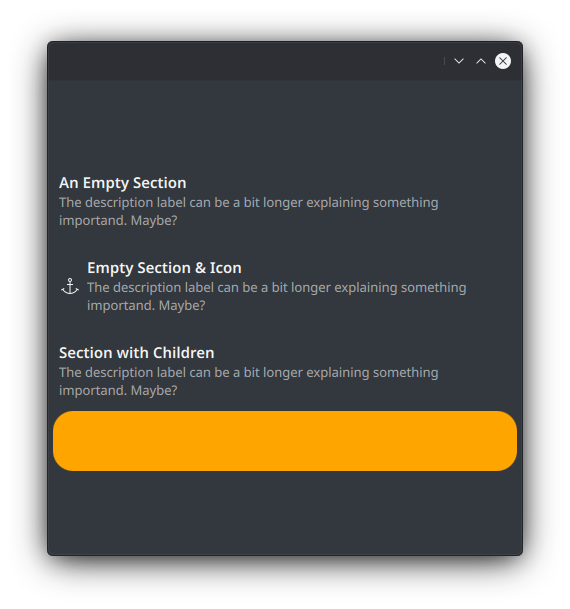

Example of different usages of the control

Maui.SectionGroup
{
    title: "Section with Children"
    description: "The description label can be a bit longer explaining something importand. Maybe?"

    Rectangle
    {
       Layout.fillWidth: true
       implicitHeight: 60
       radius: 20

       color: "orange"
    }
}

Note

Consider using the SectionItem or FlexSectionItem as the children elements of this control, in order to have a more cohesive look with another MauiKit applications.

You can find a more complete example at this link.

Definition at line 35 of file SectionGroup.qml.

Property Documentation

content

alias SectionGroup::content

read

Remarks

This is the default property

Definition at line 43 of file SectionGroup.qml.

description

string SectionGroup::description

read

The message body of the section header.

Definition at line 53 of file SectionGroup.qml.

template

SectionHeader SectionGroup::template

read

An alias to the section header title control, which is handled by SectionHeader More properties can be accessed via this alias, such as setting a custom icon or image, etc, for that use the template of the template.

Remarks

This property is read-only

Maui.SectionGroup
{
  title: "Hello"
  description: "Description text"
  template.template.iconSource: "folder" //Here we access the template of this control, which is a SectionHeader, and then the template fo the section header, which is a ListItemTemplate.
}

See also

SectionHeader

ListItemTemplate

Definition at line 70 of file SectionGroup.qml.

title

string SectionGroup::title

read

The title of the section header.

Definition at line 48 of file SectionGroup.qml.

---

The documentation for this class was generated from the following file:

• SectionGroup.qml
