AltBrowser Class Reference

Inheritance diagram for AltBrowser:

Public Types
enum class	ViewType { Grid , List }

Properties
int	count
int	currentIndex
Item	currentView
bool	enableLassoSelection
Component	gridDelegate
alias	gridView
alias	holder
Component	listDelegate
alias	listView
var	model
bool	selectionMode
int	viewType
Properties inherited from Page
listTAction	actions
bool	altHeader
bool	autoHideFooter
int	autoHideFooterDelay
int	autoHideFooterMargins
bool	autoHideHeader
int	autoHideHeaderDelay
int	autoHideHeaderMargins
int	bottomMargin
alias	content
Flickable	flickable
bool	floatingFooter
bool	floatingHeader
alias	footBar
Item	footer
alias	footerColumn
alias	footerContainer
int	footerPositioning
Item	globalToolBarItem
int	globalToolBarStyle
alias	headBar
Item	header
int	headerColorSet
alias	headerColumn
alias	headerContainer
int	headerPositioning
PActionIconGroup	icon
alias	internalHeight
bool	isCurrentPage
int	leftMargin
int	margins
alias	overlay
alias	pageContent
var	progress
int	rightMargin
bool	showTitle
string	title
Component	titleDelegate
int	topMargin

Public Member Functions
void	toggle ()

Additional Inherited Members
Signals inherited from Page
void	backRequested (var event)
void	goBackTriggered ()
void	goForwardTriggered ()

Detailed Description

A convinient way of switching between a grid an a list view.

Since

org.mauikit.controls 1.0

This controls inherits from MauiKit Page, to checkout its inherited properties refer to the docs.

See also

Page

Note

This control supports the attached Controls.showCSD property to display the window control buttons when using CSD.

The AltBrowser makes use of the GridView and ListBrowser components, there is a property to dinamically switch between the two.

For some navigation patterns is a good idea to provide a grid view when the application screen size is wide enough to fit numerous items and a list view when the space is contrained - since the list is much more compact - and makes navigation quicker.

See also

viewType

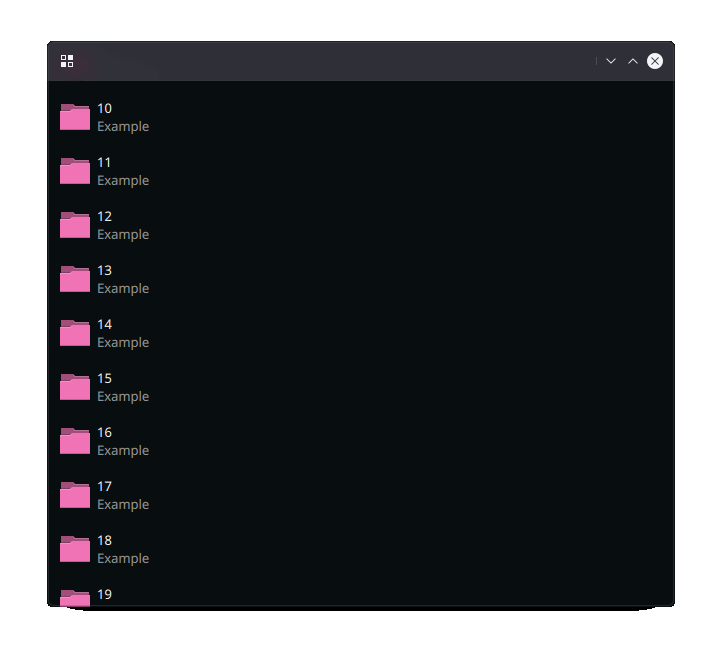

Switching between the list and grid view

Notes

The data model is shared by both of the view types, but the delagates to be used have to be assigment for each one.

See also

listDelegate

gridDelegate

There is a MauiKit Holder element that can be used to display a placeholder message, for example, when the views are empty.

See also

holder

Maui.AltBrowser
{
    id: _altBrowser
    anchors.fill: parent

    Maui.Controls.showCSD: true
    viewType: Maui.AltBrowser.ViewType.Grid

    gridView.itemSize: 120

    headBar.leftContent: ToolButton
    {
        icon.name: _altBrowser.viewType === Maui.AltBrowser.ViewType.Grid ? "view-list-details" : "view-list-icons"
        onClicked: _altBrowser.toggle()
    }

    model: 20

    listDelegate: Maui.ListBrowserDelegate
    {
        width:ListView.view.width
        label1.text: index
        label2.text: "Example"
        iconSource: "folder"
    }

    gridDelegate: Maui.GridBrowserDelegate
    {
        height: GridView.view.cellHeight
        width: GridView.view.itemSize

        iconSource: "folder"
        label1.text: index
        label2.text: "Example"
    }
}

You can find a more complete example at this link.

Definition at line 72 of file AltBrowser.qml.

Member Enumeration Documentation

ViewType

enum class AltBrowser::ViewType

strong

Definition at line 94 of file AltBrowser.qml.

Property Documentation

count

int AltBrowser::count

read

The total amount of items in the current view.

Remarks

This property is read-only

Definition at line 157 of file AltBrowser.qml.

currentIndex

int AltBrowser::currentIndex

read

The index of the current item selected in either view type.

This value is synced to both view types.

Definition at line 112 of file AltBrowser.qml.

currentView

Item AltBrowser::currentView

read

The current view being used, the GridView or the ListBrowser.

To access the precise view use the aliases for the GridView or ListView.

See also

listView

gridView

Remarks

This property is read-only

Definition at line 85 of file AltBrowser.qml.

enableLassoSelection

bool AltBrowser::enableLassoSelection

read

Allow the lasso selection for multiple items with mouse or track based input methods.

Definition at line 128 of file AltBrowser.qml.

gridDelegate

Component AltBrowser::gridDelegate

read

The delegate to be used by the GridView.

Definition at line 120 of file AltBrowser.qml.

gridView

GridBrowser AltBrowser::gridView

read

The GridBrowser used as the grid view alternative.

Remarks

This property is read-only

Definition at line 146 of file AltBrowser.qml.

holder

Holder AltBrowser::holder

read

Item to set a place holder emoji and message.

For more details on its properties check the Holder component.

See also

Holder

Definition at line 140 of file AltBrowser.qml.

listDelegate

Component AltBrowser::listDelegate

read

The delegate to be used by the ListBrowser.

Definition at line 116 of file AltBrowser.qml.

listView

ListBrowser AltBrowser::listView

read

The ListBrowser used as the list view alternative.

Remarks

This property is read-only

Definition at line 152 of file AltBrowser.qml.

model

var AltBrowser::model

read

The shared data model to be used by both view types.

Definition at line 124 of file AltBrowser.qml.

selectionMode

bool AltBrowser::selectionMode

read

Allow the selection mode, which sets the views in the mode to accept to select multiple items.

Definition at line 132 of file AltBrowser.qml.

viewType

int AltBrowser::viewType

read

Sets the view type that's going to be in use.

The type can be one of:

• ViewType.Grid
• ViewType.List The default

See also

ViewType

Definition at line 107 of file AltBrowser.qml.

Member Function Documentation

toggle()

void AltBrowser::toggle

(

)

Toggle between the two views.

If in list view then switches to grid, and from grid to list.

---

The documentation for this class was generated from the following file:

• AltBrowser.qml
